500L/H 1000L/H Reverse osmosis system wastewater treatment plant

Reverse osmosis (RO) is a water purification technology that Reverse Osmosis System uses a semipermeable membrane to remove ions, molecules and larger particles from drinking water. In reverse osmosis, the pressure applied is used to overcome the osmotic pressure, which is a collinear property, driven by the chemical potential difference of the solvent, and a thermodynamic parameter.

Item NO.:
MZH-RO
Payment:
L/C,D/A,D/P,T/T,Western Union
Product Origin:
China
Shipping Port:
haungpu,guangzhou
Lead Time:
45days

Products Description

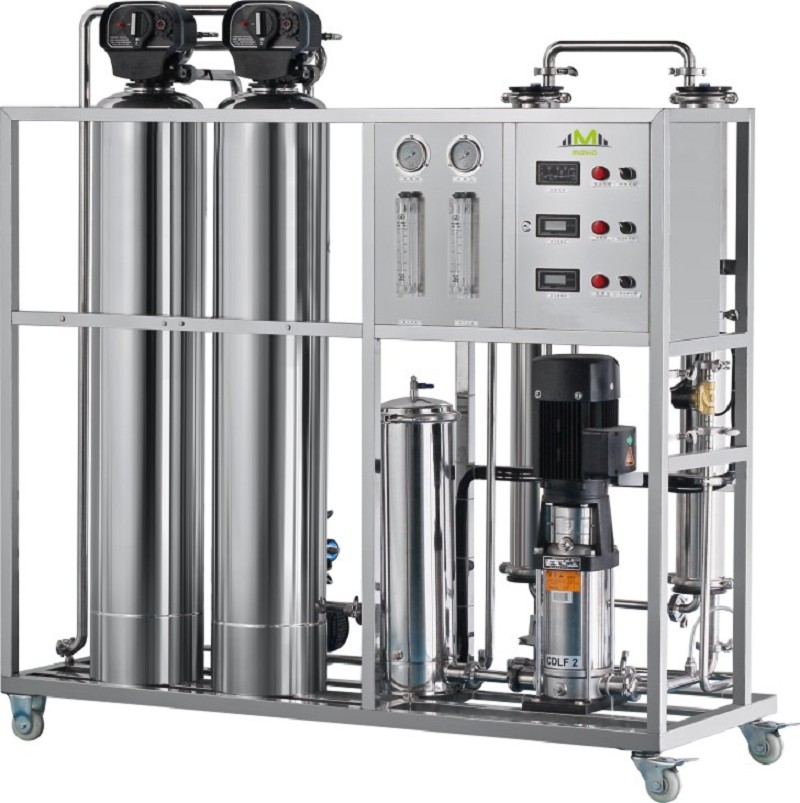

500L/H 1000L/H Reverse osmosis system wastewater treatment plant

Customized And OEM Service Available

Stainless Steel Reverse Osmosis System

RO+EDI system

USE：Cosmetic, Pharmacy, Chemical Industry, Foodstuff.

I.PROCESS OF WATER

Raw Water → Raw Water Pump → Multi-medium Filter(quartz sand)→ Active Carbon Filter → Secondary Filter → Reverse Osmosis Device(USA DOW Membrane) → Pure Water Supply

II.STANDARD CONFIGURATION

1.Dow membrane (USA Brand)

2.Nan fang high-pressure pump(Top brand in China)

3.Korean imported pressure switch

4.ported electromagnetic valve, pressure gager

III.CHARACTERISTICS

1.Imported accessories account for over 90%

2.High degree of automation operation

3.Automatic stopping in case of sufficient water under low pressure

4.Automatic stopping in case of sufficient water under high pressure

5.Protection of hydraulic resistance

6.Timed flushing of front filtering materials by automatic controller

7.Automatic flushing of reverse osmosis film by IC microcomputer

8.Automatic monitoring of water quality

9.Small landing area, low energy consumption, free of pollution, simple process, high water quality and easy operation.

10.High removing rate, above 97% for dissolved salts, above 98% for organic substances and above 98% for colloids, bacteria and heat sources etc.

VI. TECHNICAL SPECIFICATIONS:

Model	MZH-RO500L/H
Productivity	0.5T/H
Power	0.75kw
Recycle Rate(%)	30
Purified water productivity(us/cm)	3-8
Feed Water Productivity(us/cm)	≤300
Material	Stainless Steel

0.5T/h Reverse Osmosis Equipment Details

Process: quartz sand filter→active carbon filter- Reverse Osmosis

Control Mode: Automatic

serial number

Device name

Equipment specifications

quantity

remarks

Raw water booster pump

Type: 4-60

1stage

China Brand

Flow: 0.5 cubic meters / h

Hight: 15M

		Power: 0.37KW
		Material: 304 PVC Glass
2	Sand filter	Type; vertical cylinder	1stage	Miziho
		Equipment output: 0.5 cubic meters / h	1 entry	RXT
		Diameter：350mm	1 entry
		the total height of Filter：1500mm
		Working pressure：≦0.8Mpa
		Equipment Material: PVC Glass		joint venture
		Filter media: fine quartz sand 5mm	50Kg	Domestic
3	Active Carbon	Type; vertical cylinder	1 set	Miziho
		Equipment output: 0.5cubic meters / h	1 entries	RXT
		Diameter：350mm	1 entries
		the total height of Filter：1500mm	1 set
		Working pressure：≦0.9Mpa
		Equipment Material: PVC Glass		China brand
		Filter media: activated carbon, particle size 0.3-0.4mm height1500mm Type:RO-0.5T	25Kg	Domestic
4	Manual Valve		1 set	Miziho
		Rated output:0.5T/hr,
		Rated output:25℃
		System desalination rate:>97%
5	precision Filter	YF-302pcs	1 set	Taiwan
6	filter	30〞	1 set	Taiwan
7	filter element	PX05-30	2pcs	U.S. OSMONICS
8	High-pressure pump	Type:4-160	1 stage	Hangzhou South pump
		output:1.5T/H
		Height:100M
		power:1.1KW
		Equipment Material: Stainless Steel
9	Reverse osmosis	Type：DOW	2branch	U.S.Dow

	module	Desalination rate of the minimum：99.4%
10	Membrane-side connector	materials：PVC pipe	4 sets	joint venture
11	Pressure Vessels	Type：PV404-2-PVC	3 branch	joint venture
11	Pressure Vessels	Materials: PVC Glass	3 branch	joint venture
12	Water Conductivity Table	Online measurement	1 stages	SUNTEX company
13	Water solenoid valve	DN20	1 entries	joint venture
14	Rinse solenoid valve	DN20	1 entries	joint venture
15	Control Valve	DN20	1 entries	joint venture
16	Flowmeter	Type：50750	2 entries	joint venture
17	Pressure gauge	Type：0-0.6Mpa	2 sets	joint venture
17	Pressure gauge	Type：0-2.5Mpa	2 sets	joint venture
18	Low pressure control switch	Type：psi	1 set	Korea
19	Equipment racks	Materials：SUS304	1 set	joint venture
20	Pipeline system Pipe Fittings	Materials：PVC	1 set	joint venture
21	RO control System		1 set	Germany Schneider
22	Controller		1 set	Button control china brand
23 24	Related electrical items Electronic control and table	ABS-Insulation	1 set 1set	Germany Schneider China
